The GitLab platform provides a self-hosted GitLab instance for source control, issue tracking, and CI/CD. It includes the GitLab web interface and can optionally expose SSH access for git operations.

Overview

GitLab is used as an internal code forge and repository host within LGF.

  • Git repository hosting
  • Web-based project management
  • CI/CD pipelines
  • Optional SSH access for git operations

GitLab can also be used to host LGF mirror repositories for fully internal deployments.

⚠️ Startup Behavior (Important)

GitLab takes significantly longer to initialize than other platforms.

  • Initial startup can take several minutes
  • The web interface may return 502 errors during this time
  • This is expected behavior while internal services initialize

Do not attempt repair or restart during this phase. Allow the system to complete initialization before taking action.

Deployment

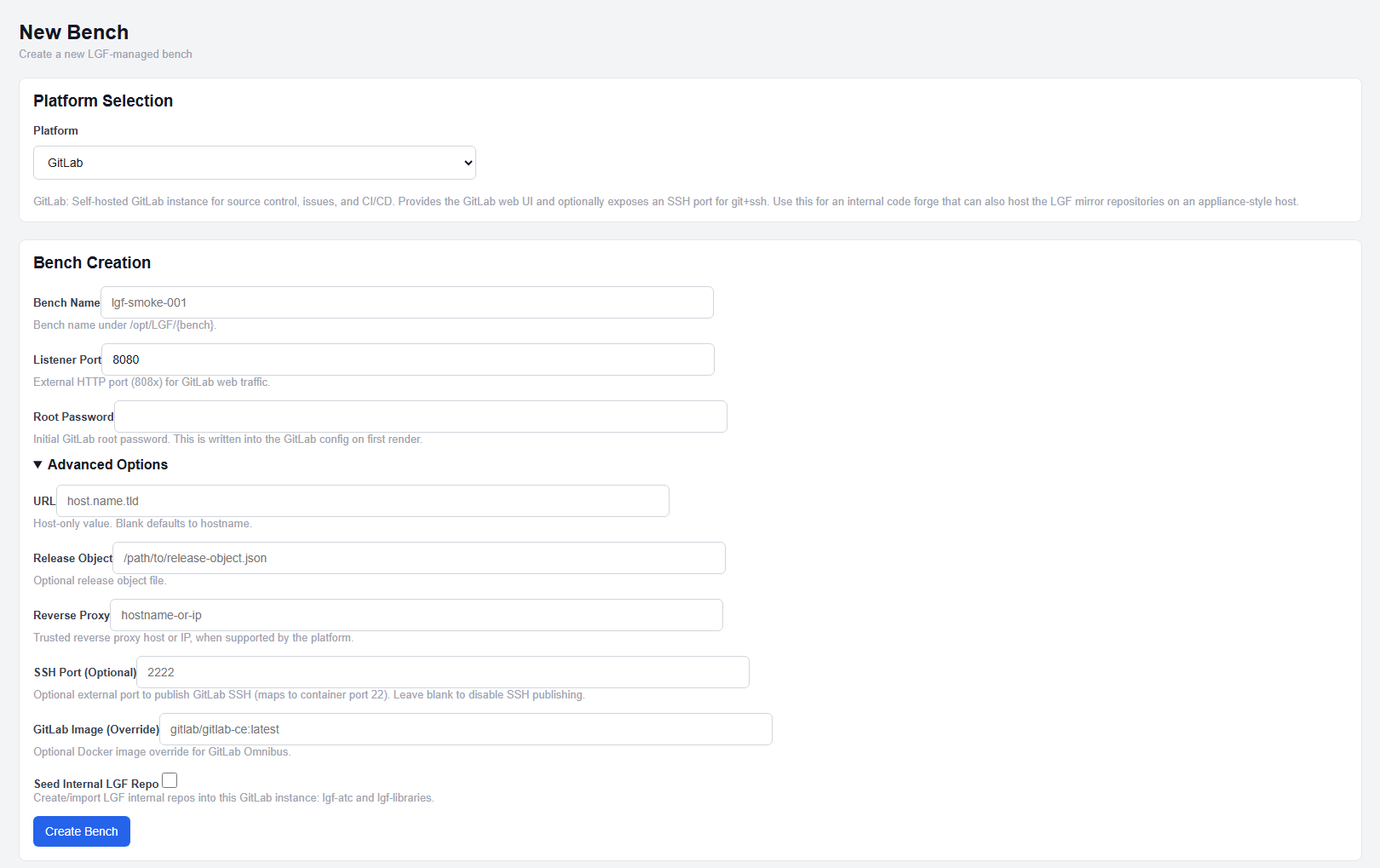

Article screenshot 1

GitLab deployment configuration

  1. Select GitLab from the platform dropdown.
  2. Enter a Bench Name.
  3. Set the Listener Port.
  4. Enter a Root Password.
  5. (Optional) Configure additional fields.
  6. Click Create Bench.

Required Fields

  • Root Password: Initial GitLab root account password

This password is written into the GitLab configuration during first render.

Standard Fields

  • Bench Name: Unique identifier for the deployment
  • Listener Port: External HTTP port for GitLab web traffic
  • URL: Host-only URL (no scheme, path, or port)
  • Reverse Proxy: Optional reverse proxy hostname or IP

URL defaults to an automatically generated hostname if not provided.

Advanced Options

  • SSH Port (Optional): External port for GitLab SSH access (maps to container port 22)
  • GitLab Image (Override): Optional Docker image override for GitLab Omnibus
  • Seed Internal LGF Repo: Automatically creates and seeds LGF repositories into GitLab

Seeding creates internal repositories such as:

  • lgf-atc
  • lgf-libraries

These are populated using LGF's internal mirror sources.

Expected Result

  • The GitLab bench is created and enters a building state
  • Services initialize over several minutes
  • The web interface becomes accessible once initialization completes

Important Notes

  • Startup time is significantly longer than other platforms
  • Temporary 502 errors during startup are normal
  • Root Password must be set during deployment
  • URL must be host-only (no scheme, path, or port)
  • SSH access is optional and disabled unless configured
  • Reverse proxy is recommended for external access

Next Steps

  • Access the GitLab web interface once available
  • Log in using the root account
  • Configure users, groups, and repositories
  • Set up SSH access if required
